Digital Xray Sensor/Direct USB

The Latest Direct USB Technology in Digital Xray Sensor,QuickRay Drict USB has been installed at City Park Dental Clinic since June,2014 to replace the previous Kodak RVG5000 Sensor. The price is 3,995 US$

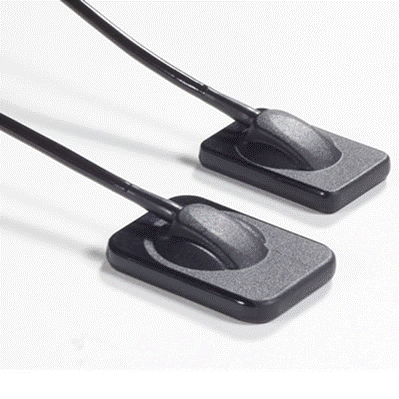

The Quickray Digital X-Ray Sensor Manufactured by E2V

• High Definition, High Resolution, High Contrast and 26 Lp/mm
• Cropped corners for increased patient comfort
• Software Flexibility, sensor integrates into; Dexis 10 and above, Eaglesoft Imaging, Xray Vision, Prof Suni, and many more
• Best in class warranty-5 Year manufacturers warranty
• Direct USB computer integration-Works in Windows XP, Windows 7 and Windows 8 both 32 bit and 64 bit
• Comes in Size 1 and Size 2

Features & Highlights:

- CMOS technology with scintillator
- 2 Sensor Sizes
- 4096 gray scale levels (12 bit image)
-Direct USB connection
-No data box
-No external power connection
-Built in USB 2.0 Interface
-USB 2.0 Plug and Play
-Two sensors can be operated
- Image transfer and control via the PC
-3 meter USB sensor cable
-12 bit image digitalization
- 16 bit uncompressed image file save
-Well defined software interface Standard or 2x2 binned imaging modes
- Intelligent Auto Trigger

Technical Specifications:

Theoretical resolution 26.3 lp/mm
Real resolution >20 lp/mm or 0.05 mm image detail
Signal to noise ratio: 40 dB
Scintillator: CSI depositing on fiber-less sub-strate
